Driveway Channel Drains
We install linear channel drains across driveway entries and garage thresholds, intercepting runoff before it reaches your garage or house and keeping your driveway safer and drier after heavy rain.
Drainage / Brisbane & surrounds
Brisbane Paving and Channel Drains
Bring paving levels, linear drains and below-ground stormwater connections together.
Your property, considered
Paving and Channel Drains in Brisbane
Pooling water on a driveway, patio or under-house slab can damage paving, entrances and building foundations over time. In Brisbane, channel drains and well-set paving levels work together to guide storm runoff to a suitable discharge point. Small level problems can cause big drainage issues over time.
Good results depend on getting both the surface and the underground pipework right. Tell us about the area and what is going wrong, and we can help you plan drainage and paving work that suits your property. Careful planning avoids rework and leaves a tidy, practical finish.
Explore Brisbane Paving and Channel Drains and find the right starting point for your property.
What we handle
Paving and Channel Drain Services in Brisbane
Patio and Alfresco Drains
Water pooling on patios and entertaining areas ruins outdoor living. We install grated drains and set falls so rain moves off the surface quickly, leaving your space dry and usable.
Pool Surround Drainage
We install channel drains and pits around pools, spas and decks, keeping splash water and rain off paving and protecting the surrounding area from slippery surfaces, mould and standing water.
Retrofit Drains in Existing Paving
We cut neatly into existing concrete or pavers, install a channel drain and reinstate the surface, solving drainage problems without replacing your entire driveway or outdoor area, saving you money.
Grates for Traffic and Style
We carefully select channel drain grates rated for foot traffic or vehicles, in finishes and materials that suit your paving, so your drain performs well and looks tidy for years.
Connection to Stormwater Systems
Every channel drain is connected to a suitable outlet, such as a stormwater pipe, pit or soakwell, ensuring collected water is carried away reliably and does not move the problem.
Patio and courtyard
Setting a linear channel drain into patio paving
A linear channel drain collects water across the width of a patio, rather than relying on a single grate. Set properly, it stays almost invisible while keeping outdoor areas usable after storms.
Position matters. The channel normally sits at the low edge of the paved area or at the threshold of doors, with paving falling gently toward it. Ask your installer how the outlet connects to stormwater and whether it can be cleaned. Discuss grate styles that suit the paving, and confirm the finished level sits slightly below adjoining surfaces so water enters the channel.
- Low edge placementChannels work best where paving falls toward them, such as the base of a patio or along door thresholds.
- Check the outletAsk where the channel discharges and how that connection can be reached for cleaning in future.
- Choose the grateGrate patterns, materials and loading ratings differ. Pick one that suits foot traffic, furniture and the paving style.
- Set the levelThe grate should sit just below surrounding paving so water flows in without leaving a trip edge.

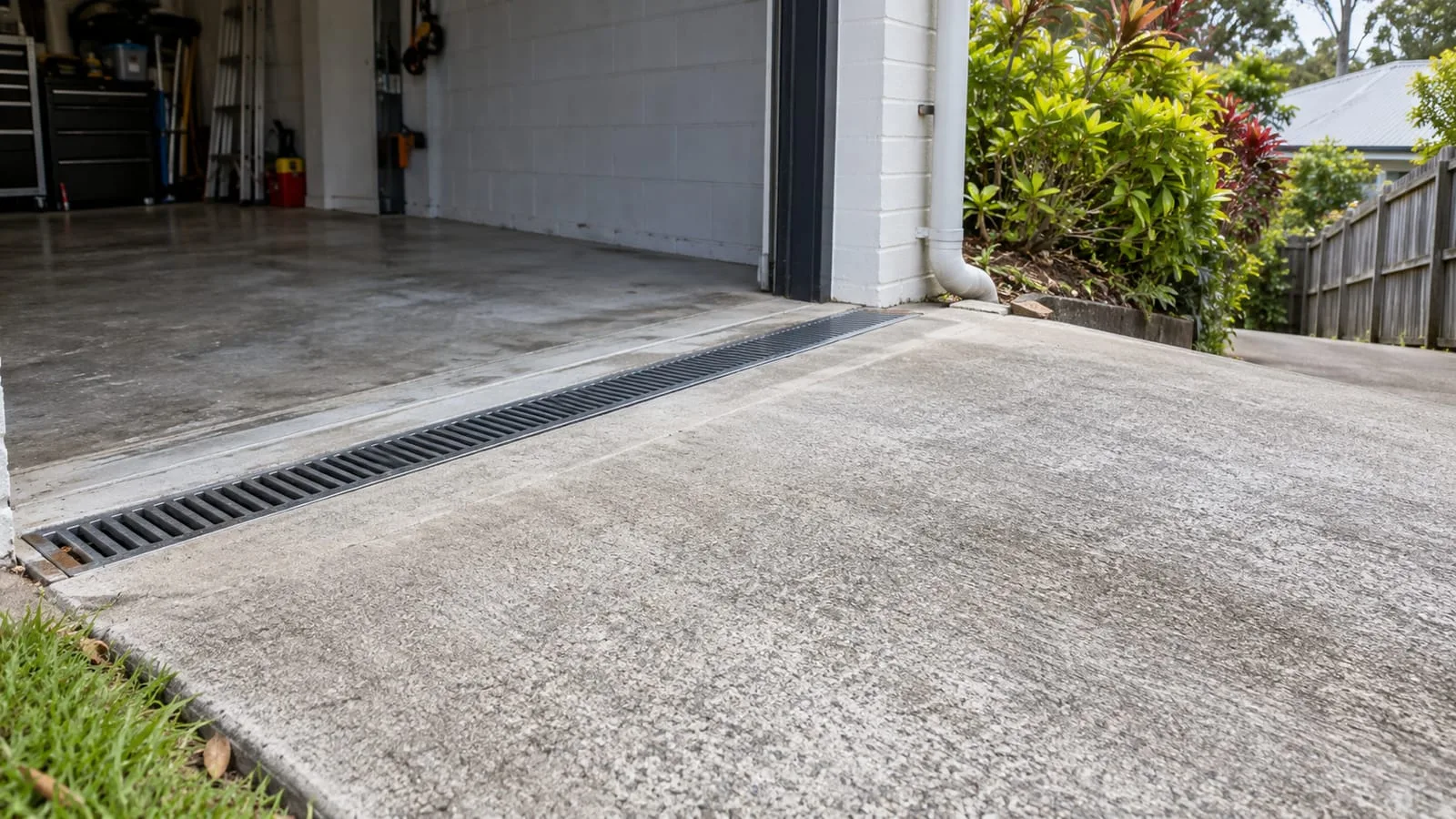

Driveway runoff
Garage entry drains on sloping Brisbane driveways
Rain running down a sloping driveway can reach a garage door in seconds. A channel across the entry intercepts water before it enters the garage or runs toward the house.
Walk the driveway during rain to see where water arrives from, including uphill neighbours and the street. A channel placed across the width, near the threshold, catches sheet flow. Check that the grate is strong enough for vehicles and that the outlet connects to a lawful discharge point. Confirm requirements with Council or a qualified professional where the drain meets the street.
- Intercept uphill flow
- Place the channel across the full width so water arriving from above is caught before the garage door.
- Vehicle loading
- Choose a grate rated for cars and heavier vehicles, and ask your installer to confirm the product suits your driveway.
- Lawful discharge
- Water must go to an approved point. Confirm requirements with Council or a qualified professional before connecting.
- Keep it clear
- Leaves and grit build up quickly under grates. Plan regular cleaning, especially before the storm season.

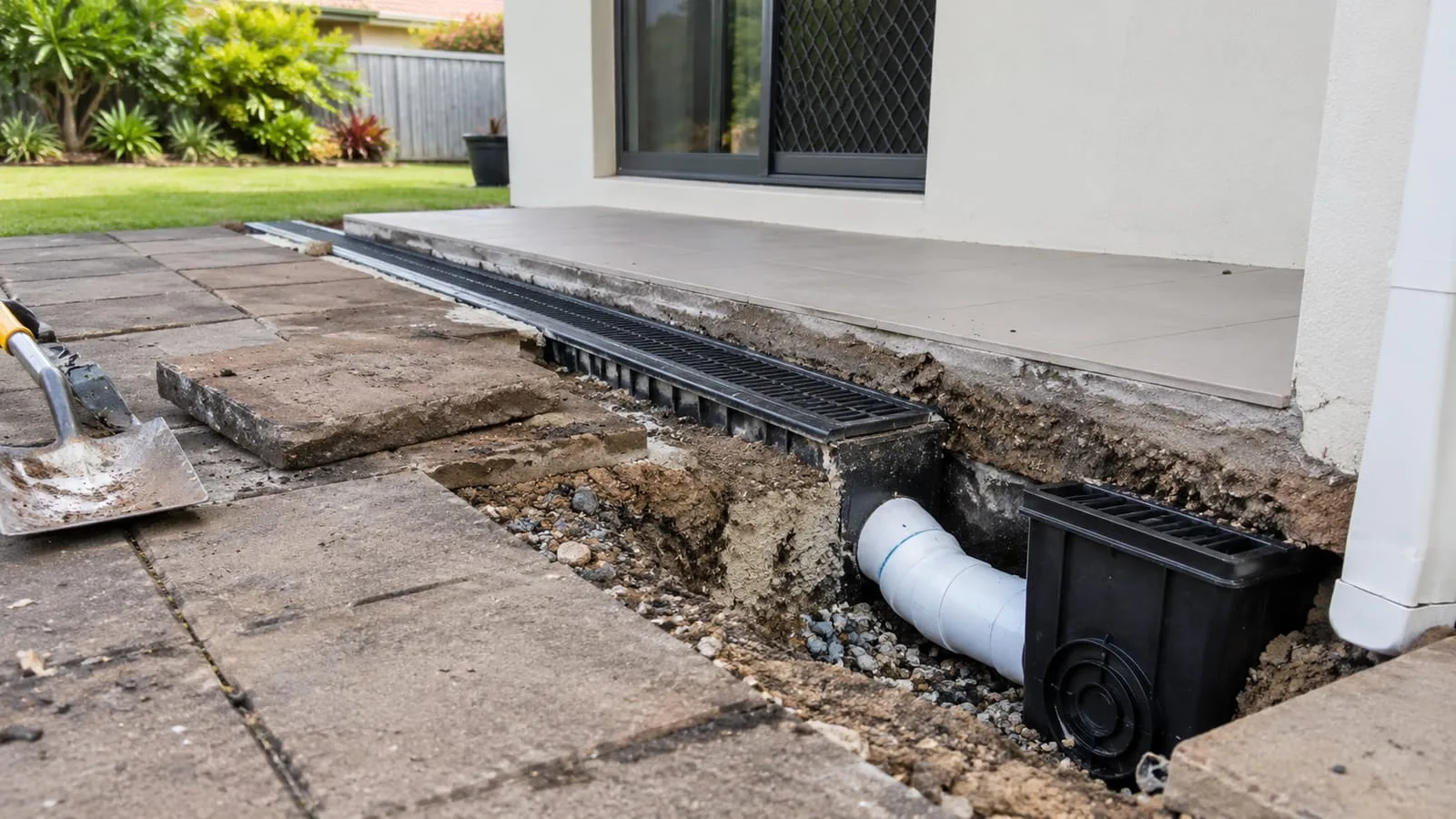

Lifting pavers to repair or replace a channel drain
Older channels crack, silt up or sit at the wrong level. Fixing them often means lifting pavers, so planning the sequence helps keep the finished surface looking tidy.
Photograph first
Record paver pattern, colour and edge details so the finished surface can be matched as closely as possible.
Save spare pavers
Keep any offcuts and spare stock. Old pavers can be hard to match once a few are broken.
Check the outlet
Ask for the pipe and outlet to be checked while paving is up, since it may be silted or damaged.
Before work starts, photograph the area and take note of paver pattern, colour and edge details. Keep spare pavers where possible, since matching old ones can be difficult. The installer lifts surrounding paving, assesses the channel and outlet, then relays sand and pavers to the right falls. Ask how the outlet will be checked and whether the bedding needs improving.
Why choose us
Why Choose Our Paving and Channel Drain Contractors in Brisbane
Water pooling on driveways, patios and paths is both unsafe and damaging. We install paving and channel drains that capture surface water quickly and carry it away cleanly and safely.
A channel drain only works when it is sized, set and connected properly. We match the channel and grate to the traffic and water flow, set the falls so water runs to the drain and connect it to a suitable stormwater outlet, so driveways, patios and paths shed water cleanly and stay safe to walk and drive over.
Neat, Professional Installation
We cut, set and finish channel drains precisely, ensuring grates sit flush with your paving or concrete so the result looks tidy and is safe to walk and drive over.
The Right Drain for the Job
We select channel sizes and grate ratings to suit foot traffic, vehicles and expected water flow, so your drain performs properly and does not crack, clog or fail too early.
Correct Slope and Connection
We carefully set falls so water flows toward the drain and connect it to a suitable, approved stormwater outlet, preventing ponding against garages, doors and foundations after heavy summer rain.
Works With Your Paving
We coordinate with concreters and pavers or retrofit drains into existing surfaces, minimising rework and keeping your new or established outdoor area looking its best, with minimal fuss and mess.
